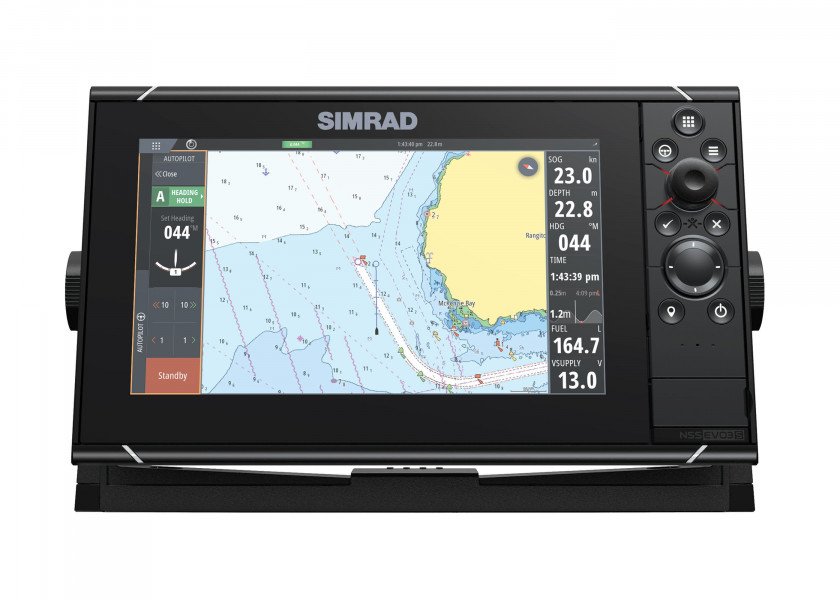

SIMRAD NSS9 evo³S / touch + buttons
Product details
The new NSS9 evo3S features a high-resolution 9-inch widescreen SolarMAX™ display and a new, more powerful iMX 8 high-performance processor. Thanks to its processor, wide viewing angles and reliable control via multi-touch or keyboard with rotary knob, you will always have complete control even in harsh conditions.
Key Features
Key Features
- High-performance six-core processor iMX 8
- 9-inch widescreen SolarMAX™ HD display
- Integrated high-performance echo sounder with 1 kW CHIRP
- Navigate precisely with the integrated 10 Hz GPS/GLONASS receiver with high gain
- NMEA 2000® connectivity for integrated machine monitoring, controlling your sound system, and much more
- Expand your network with additional Simrad modules including Simrad sonar, radar, autopilot and many more
- Connect to your smartphones, tablets and Internet hotspots quickly and easily with built-in Wi-Fi
- Reliable control: seamlessly switch between multi-touch and a full keypad with rotary control
- Make your route planning easier with TripIntel™ technology
- Flexible installation options incude either flat flush or convenient mounting bracket
- Includes a world base chart (no detailed charts)
Technical data:
| Waypoints and routes | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
| Cartography included | World base chart (no detailed charts) |
| Supported charts | Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital |
| Radar | Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar (optional) |
| External storage | 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS |
| Internal storage | 16 GB |
| GPS | internal, 10 Hz, 34 channels |
| AIS | with optional AIS transponder |
| Interface | Full touch screen (multi-touch ) and full keypad control |
| Multimedia | with optional SonicHub2 and FusionLink |
| Autopilot | Full auto pilot control and commissioning |
| Digital switching | C-Zone, Naviop |
| Ethernet | 1x ethernet port |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port |
| NMEA 0183 | 1x input, 1x output (with optional data cable SVB no: 17409) |
| Video | 2 x composite (RCA connectors) video inputs. Optional video / data cable required. |
| WiFi | Internal |
| Bluetooth | Internal |
| Dimensions (L x W x H) | 287 x 166 x 90 mm (11.3 x 6.55 x 3.5 inch) With bracket: 311 x 180 x 95 (11.3 x 7.07 x 3.72 inch) |
| Mounting type | Bracket (supplied) or panel mount |
| Weight: | 1.41 kg |
| Storage temperature range | -20°C to +60°C (4°F to 140°F) |
| Water rating | IPX6 and 7 |
| Operating temperature | -15°C to +55°C (5° F to 131° F) |
| Recommended fuse | 5A |
| Supply voltage | 10 – 31.2 V DC |
| Resolution | 720 x 1280 pixels |
| Display size and type | SolarMax HD® IPS 9″ optically bonded TFT |
| Backlight | White |
| Viewing angle | 80° top/bottom, 80° left/right |
| Languages | English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish |
Article Number
81787
EAN
9420064113590
Model no.
000-15405-001
Description
Simrad – NSS9 evo³S
Display size
9 Inch
Resolution
1280 x 720 px
Viewing angle
80 °
Screen brightness
1200 Nits
Operating mode
Touch screen, Keys
NMEA2000
Yes
NMEA0183
Optional
WiFi
Yes
Bluetooth
Yes
Ethernet / Network
Yes
Radar capable
Yes
Tablet control
Yes
Sonar module
Yes
Sonar type
CHIRP / Fishfinder, DownScan, SideScan, ForwardScan, Numerical depth
Viewing angle
Downwards, Sidewards, Forwards
Compatible Navico transducers
P79, P319, HDI, HST-WSBL, TotalScan, ForwardScan, Active Imaging, StructureScan HD, StructureScan 3D
Nautical chart support
Yes
Sea Charts
C-MAP REVEAL, C-MAP DISCOVER, Navionics+, Navionics Platinum+, NV Charts
Installation width
270 mm
Installation height
148 mm
With transducer
No
Sonar view
Fish, Bottom structure
IP protection class
IPX7
