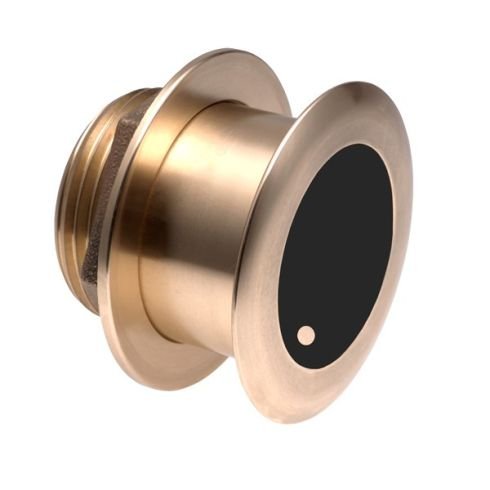

B164 (20 Degree) Thru-Hull Transducer (Sonar)
B164 High Performance Low Profile Thru-Hull Transducer w/ 20 Degree Tilted Element 1kW. Depth/Temp Transducer (a/c/e/eS Direct connect). Max Depth (Ft): L: 1,800 / H: 800. Frequency (KHz): 50 / 200. Cable Length (Ft/M): 30ft / 9m.
With 3 internal ceramics the B164 provides the increased performance of a 1kW transducer, while maintaining the benefits of a low-profile, deadrise compensated housing. Given their flush design, low-profile transducers may be more easily subjected to surface aeration at higher speeds.
Features
| Description | B164 High Performance Low Profile Thru-Hull Transducer w/ 20 Degree Tilted Element 1kW |
| Installation | Thru-Hull |
| Material | Bronze |
| Power (RMS) | 1KW |
| Max Depth (Ft) | L: 1,800 / H: 800 |
| Frequency (KHz) | 50 / 200 |
| Beam Width (L/H) | 22°/6° |
| Records | Depth / Temperature |
| Approved Hull Material | Fiberglass / Wood |
| Cable Length (Ft/M) | 30ft / 9m |
| Supported Deadrise / Transom Angles | 16-24° Deadrise |
Warranty On Raymarine B164 (20 Degree) Thru-Hull Transducer (Sonar)
*2 Year Standard Raymarine Warranty. Extend into 3 Year Warranty by Registering Product With Raymarine. Your Proof of Purchase documentation is important. Please keep it in a safe place. If you need a warranty service your proof of purchase will be required.
